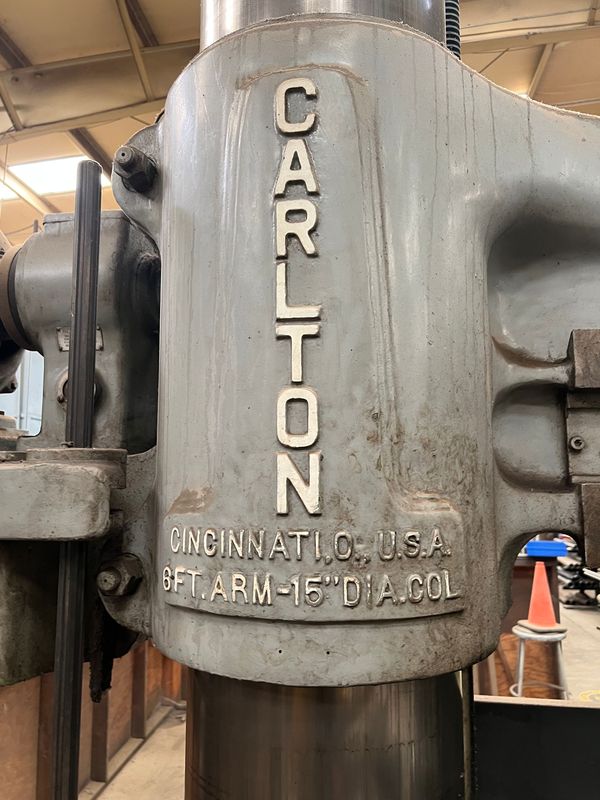

6' 15" CARLTON 3A RADIAL ARM DRILL

MODEL: 3A

AREA OF BASE: 72" X 42"

SPINDLE SPEEDS: (36) 15 TO 1500 RPM

FEEDS: (18) .004 TO .125 IPR

THREADS: 8,11-1/2, 14, 18, TPI

DIAMETER OF SPINDLE: 3-3/16"

TAPER IN SPINDLE: 5 MT

SPINDLE TRAVEL: 18"

DISTANCE SPINDLE TO COLUMN: 15" MIN. TO 72" MAXIMUM

DISTANCE SPINDLE TO BASE: 10-1/2" MIN. TO 66" MAXIMUM

TRAVEL OF ARM ON COLUMN: 37-1/2"

TRAVEL OF HEAD ON ARM: 57"

POWER HEAD TRAVEL: YES

POWER ARM CLAMPING: YES

POWER ARM ELEVATION: YES

COOLANT: YES

SPECIFICATIONS ARE SUBJECT TO CUSTOMER VERIFICATION
